From Beads to Foam: The EPS Pre-Expander Process

Expanded Polystyrene (EPS) serves as the foundational pattern material in lost foam casting, enabling the creation of complex metal components with intricate geometries and minimal parting lines. The EPS pre-expansion process stands as the critical initial phase that converts dense raw beads into low-density, uniform patterns essential for evaporative casting. This stage directly impacts pattern integrity, dimensional accuracy, and overall casting quality in lost foam applications.

This comprehensive guide examines the EPS pre-expansion process tailored for lost foam casting, detailing the scientific principles, step-by-step operations, and equipment selection criteria. Optimization at this stage reduces defects such as pattern collapse, gas porosity, and surface finish issues in final metal castings.

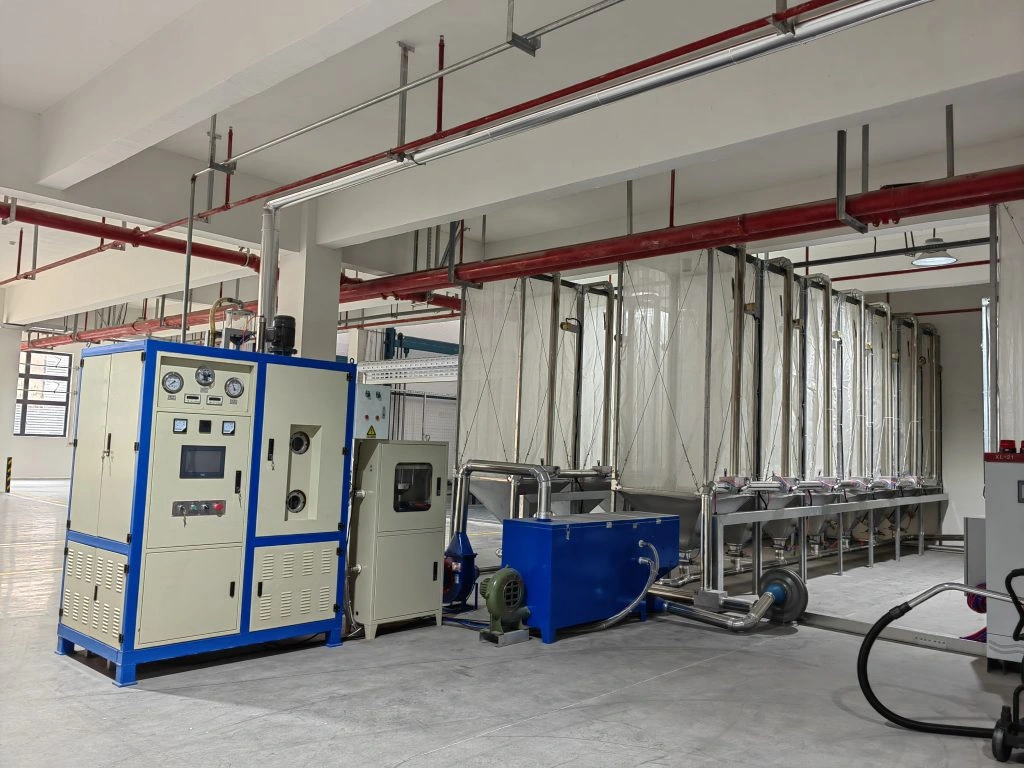

EPS Pre-Expander machine manufacturer in China

The Magic Behind EPS Pre-Expansion

Raw EPS beads start as compact granules containing pentane as the blowing agent. In lost foam casting, pre-expansion activates this agent through controlled heat and pressure, increasing bead volume by 20–50 times while achieving densities as low as 15–25 kg/m³. Precise control ensures patterns withstand coating and molten metal pour without premature evaporation or residue buildup.

Uniform pre-expanded beads minimize voids in the pattern cluster, promote consistent burnout during casting, and enhance metal fill in thin sections. Advanced pre-expanders incorporate electromagnetic heating to maintain barrel temperatures at 98°C, eliminating moisture and preventing “dead beads” that could lead to casting inclusions.

EPS Pre-Expansion Process

The process follows a sequential pathway optimized for lost foam pattern production, ensuring bead sphericity, surface smoothness, and density consistency.

Step 1: Bead Loading (Batch or Continuous)

الدفعة قبل التوسع: Pre-weighed EPS beads load into the pressure vessel, suitable for specialized lost foam grades requiring tight density tolerances.
مسبق التوسع المستمر: Metering screws deliver steady bead flow, ideal for high-volume pattern production in automated casting lines.

Electronic weighing systems achieve ±1 gram accuracy, critical for repeatable pattern weights in lost foam clusters.

Step 2: Pre-Steaming (Optional)

Low-pressure steam removes surface moisture in batch systems, preventing bead cracking and ensuring even pentane activation. This step proves essential for high-expansion lost foam grades prone to thermal shock.

Step 3: Heating

Electromagnetic and steam hybrid systems heat the chamber precisely. PLC controls with Baode proportional valves maintain stable temperatures, activating pentane without overheating the polystyrene matrix. Continuous monitoring prevents temperature fluctuations that cause irregular cell structures in patterns.

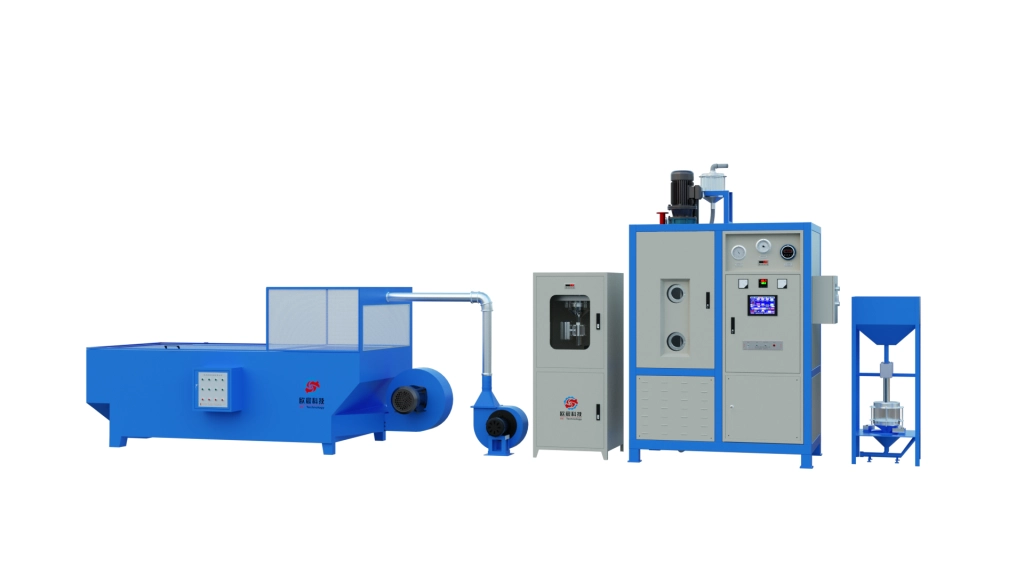

آلة التلقائي التلقائي بالكامل (بما في ذلك سرير التجفيف المميت)

Step 4: Pressurization

Gradual pressure buildup softens the bead matrix and distributes pentane uniformly. Optimal ranges (typically 0.5–1.5 bar) prepare beads for rapid expansion while avoiding premature gas release that leads to pattern fragility.

Step 5: Depressurization

Controlled rapid pressure release triggers pentane expansion, inflating beads to target size. Fast depressurization rates ensure full, rupture-free beads with smooth surfaces—vital for refractory coating adhesion in lost foam processes.

Step 6: Cooling

Integrated air cooling or fluidized beds stabilize expanded structures immediately. Bottom-discharge designs with compressed air blowdown prevent bead agglomeration and cool the chamber efficiently, maintaining cycle times under 5 minutes per batch.

Step 7: Discharge

Batch Systems: Manual or automated unloading to maturation silos.
Continuous Systems: Pneumatic transfer to storage with inline vibrating screens for preliminary filtration.

Double-layer stainless steel screens remove undersized or fused beads before maturation, ensuring only qualified patterns proceed to clustering.

Additional Process Controls for Lost Foam Applications:

Residence Time Optimization: 2–4 minutes at peak conditions yields densities suited for aluminum, iron, or steel castings.
Parameter Database: PLC systems store pre-expansion recipes traceable to specific casting alloys.
Maturation Integration: Direct transfer to aging silos allows pentane diffusion, replaced by air for dimensional stability during pattern assembly.

Choosing the Right EPS Pre-Expander Machine: Batch vs. Continuous

Selection depends on casting volume, pattern complexity, and integration with downstream lost foam equipment.

Batch EPS Pre-Expander Machine

Batch systems excel in flexibility for diverse pattern sizes and custom alloy requirements.

المزايا الرئيسية:

Superior bead uniformity for intricate lost foam patterns.
Lower initial investment for emerging foundries.
Simplified maintenance and parameter adjustments.

Limitations:

Moderate throughput for large-scale production.
Higher labor for manual operations without automation add-ons.

EPS Continuous Pre-Expander Machine

Continuous operation supports high-volume lost foam lines producing engine blocks or structural components.

المزايا الرئيسية:

Output exceeding 500 kg/hour for industrial scales.
Minimal operator intervention with full automation.
Consistent density across long runs.

Limitations:

Higher capital cost and space requirements.
Complex startup/shutdown sequences.

Critical Features for Lost Foam Integration:

Remote system upgrades for process refinement.
Leakage and power-outage protection.
Vibrating screen filtration to maturation bins.
One-click operation with stored parameter libraries.

خاتمة

Mastery of the EPS pre-expansion process determines success in lost foam casting. Precise control over bead density, size distribution, and surface quality translates directly to defect-free metal castings with superior dimensional accuracy and mechanical properties. Whether implementing batch systems for prototype flexibility or continuous lines for mass production, alignment with casting specifications remains paramount.

تكنولوجيا OC stands as a leading manufacturer, supplier, and factory of high-end intelligent lost foam casting equipment. Specializing in fully automatic pre-foaming machines with fluidized drying beds, OC Technology delivers PLC-controlled systems featuring electromagnetic-steam hybrid heating, ±1g weighing accuracy, and remote diagnostics. Models OC-YF-Y450 and OC-YF-Y550 optimize EPS pattern production for aluminum, iron, and steel applications.

الأسئلة الشائعة

Q: What density range is ideal for lost foam patterns?
A: 15–25 kg/m³ ensures pattern rigidity during coating while allowing complete burnout without residue.

Q: How does electromagnetic heating improve pre-expansion?
A: It maintains dry, stable 98°C barrel temperatures, eliminating dead beads and ensuring uniform cell structure.

Q: Can the same pre-expander handle EPS, EPP, and copolymers?
A: Yes, with stored parameter databases for material-specific recipes.

Q: What is the role of fluidized drying beds?
A: They provide immediate cooling and preliminary screening, preventing agglomeration and ensuring maturation quality.

Q: How long is the maturation period after pre-expansion?
A: Typically 6–24 hours, depending on ambient conditions and pentane content.
