Understanding Lost Foam Casting and Its Coating Requirements

¿Qué es el casting de espuma perdida?

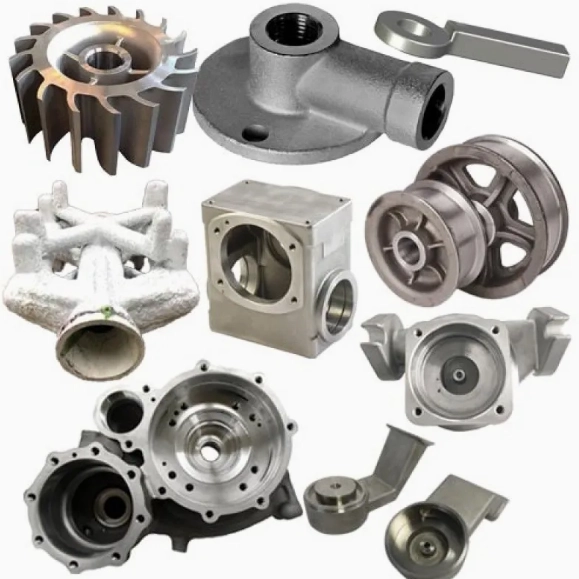

Casting de espuma perdida is a common method to make detailed metal pieces with great accuracy. It uses a foam shape that gets covered with a special lost foam casting coating. This shape is placed in sand, and hot metal is poured in, turning the foam into vapor. The lost foam casting process has three main areas. The white area is where the foam shape is made. The yellow area is where the foam gets coated and dried. The black area is where the mold is created and metal is added. This method makes parts that are almost perfect in shape, saves money on finishing, and is kind to the environment. It is very useful in fields like car-making, airplane-building, and metal-working.

The Importance of Coatings in Lost Foam Casting

Coatings in lost foam casting have many important jobs. The lost foam casting coating stops metal from leaking into the foam shape, keeping the mold strong. It also makes the surface of the final piece look nice and smooth. Plus, it helps avoid problems like leftover carbon or bad reactions during casting. However, putting on these coatings can be tricky. Getting the coating material for lost foam casting to be the same thickness everywhere is hard. It’s also tough to stop the coating from settling or to spread it evenly on foam shapes. That’s why a good paint mixer is so helpful.

The Critical Role of Lift Type Paint Mixers in Lost Foam Casting

Design and Components of a Lift Type Paint Mixer

A Lift Type Paint Mixer is very important for making sure the coating material for lost foam casting is mixed and spread evenly. The machine has two main parts: the Main Mixing Disperser and the Anti-Sedimentation Immersion Tank. The Main Mixing Disperser is made of strong stainless steel that doesn’t rust. It has a motor that can change speeds from 0 to 1,100 spins per minute. This lets you control how thick the coating is. The fast spinning mixes the coating well, removes air bubbles, and makes it smooth. This gives a much nicer finish than old mixing ways. The Anti-Sedimentation Immersion Tank is wide, about 1.5 meters across. It’s used for big coating jobs. It spins slowly to keep the coating from settling. This keeps the coating material for lost foam casting the same all through, so it goes on evenly.

Advantages Over Traditional Mixing Methods

Old mixing methods often cause problems in the coating process. Fast blades in old mixers can harm the foam shape, making the coating less good. The Lift Type Paint Mixer uses a soft but strong mixing method. This keeps the foam shape safe. Also, the mixer makes the lost foam casting coating level and smooth. It stops air from getting trapped, which leads to a better surface on the final pieces. This makes the castings more exact and long-lasting.

Optimizing the Yellow Zone: Coating Workflow with Lift Mixers

Step-by-Step Coating Process Integration

The coating process in the lost foam casting workflow is very important, especially in the yellow zone. Using a Lift Type Paint Mixer in this step makes coating better and faster. First, the foam shapes must be cleaned well and fixed if needed. This helps the coating stick properly. If the foam has dirt, the coating won’t hold, and the final piece may have flaws. Next, the best way to put on the lost foam casting coating is by dipping the foam in the coating. This makes sure the foam shapes are covered evenly. For complicated shapes, several layers of coating are needed. Usually, three layers are used. Each layer is dried carefully at 45-50°C to stop it from hardening too soon. Using high-quality lost foam casting refractory coating, like those made with silica or zirconia, helps the coating handle the heat when metal is poured. Also, controlling the thickness of the coating stops problems like sand sticking to the piece and makes the coating go on smoothly.

Preventing Defects

Using top-quality refractory coating for lost foam casting is key to avoiding flaws. These coatings, like silica-based or zirconia-based ones, can handle high heat during metal pouring. Controlling the coating’s thickness properly also stops issues like sand sticking to the metal. This ensures the coating goes on smoothly and the final piece looks great.

Technical Specifications and Maintenance Best Practices

Key Performance Metrics

The Lift Type Paint Mixer has great features that make the coating process better. It works with many metals, like gray iron, ductile iron, and carbon steel. The automatic mixing cycles can cut mixing time by up to 30%. This makes work faster and lets you make more pieces. The machine is built for big projects, so it fits many lost foam casting needs. You can change the mixing speed and coating thickness. This makes sure each piece gets the right coating for its job.

Maintenance Tips for Longevity

To keep the Lift Type Paint Mixer working for a long time, you need to take care of it. Cleaning the stainless steel parts often stops leftover coating from building up. This keeps the mixing process working well. Adding oil to the mixing spindle bearings regularly helps the machine run smoothly. If the coating thickness isn’t steady or the coating settles, simple fixes can help. For bigger problems, you may need to call a professional.

FAQs

How does a Lift Type Paint Mixer improve coating uniformity?

The mixer’s slow-spinning tank stops the coating from settling. Its strong blades mix the coating well, making it smooth and free of bubbles.

Can refractory coatings be applied manually without a mixer?

You can apply coatings by hand, but it’s risky. Hand methods may lead to uneven coatings. Automated mixers like the Lift Type Paint Mixer make sure coatings are steady, even for tricky shapes.

What’s the ideal coating thickness for lost foam castings?

The best coating thickness is usually 1.5 to 3 millimeters. It depends on how complex the piece is and what metal is used.

How to troubleshoot coating adhesion failures?

Check if the foam surface is clean. Look at the coating’s pH levels. Also, check the humidity in the drying room.

Are Lift Mixers compatible with all refractory coatings?

Yes, Lift Type Paint Mixers work with many lost foam casting refractory coatings. These include silica, zirconia, and special blends.
