The Role of EPS Pre Expander Machines in Lost Foam Casting

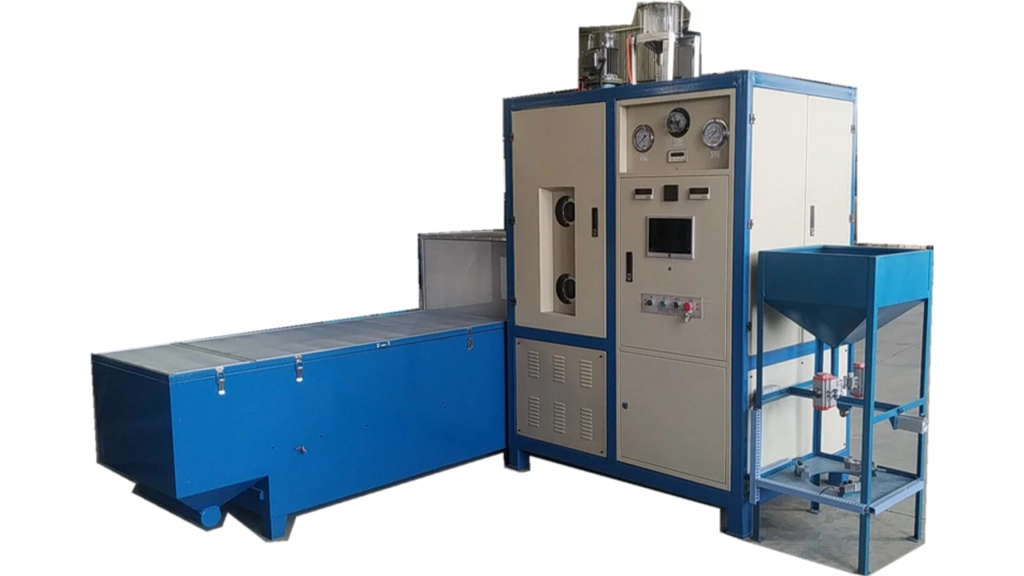

What is an EPS Pre Expander Machine?

An EPS pre expander machine is a specialized piece of equipment used to expand raw polystyrene beads into lightweight, low-density foam beads suitable for molding. The expansion process uses heat—typically steam—to activate a blowing agent within the beads, causing them to expand significantly in volume. These expanded beads are then stabilized and used to form patterns in lost foam casting processes.

The foaming method is a mixture of electromagnetic and steam foaming, using electromagnetic heating to stabilize the temperature of the barrel at 98 degrees. The barrel is dry and free of water, and the foaming environment is good, avoiding the production of “dead beads”.

How Lost Foam Casting Utilizes Expanded Polystyrene

Lost foam casting relies on expanded polystyrene (EPS) patterns that replicate the geometry of the final metal component. These EPS patterns are coated with refractory materials and embedded in sand. When molten metal is poured into the mold, it vaporizes the EPS pattern, allowing the metal to fill its place.

Expanded Polystyrene (EPS), commonly known as Styrofoam, is the material of choice for creating foam patterns in lost foam casting due to its unique properties. EPS vaporizes completely without leaving residues, ensuring clean castings with minimal defects.

The Significance of Pre Expansion in the Casting Process

Pre-expansion determines critical characteristics such as bead density, uniformity, and moisture content—all essential for creating stable and accurate molds. Properly expanded beads ensure dimensional accuracy and surface smoothness in the final casting while minimizing defects like porosity or inclusions.

Quantitative foaming using electronic weighing method, with a pre weight deviation within ± 1 gram.

Key Features of EPS Pre Expander Machines

Types of EPS Pre Expander Machines Used in Foundries

Batch Type vs. Continuous Type Expanders

Batch type machines process a set quantity of material per cycle, offering better control over density and temperature—ideal for precision applications like lost foam casting. In contrast, continuous expanders operate non-stop but may lack fine-tuned control.

Batch pre-expanders are ideal for smaller production volumes or applications requiring precise density control.

Technical Specifications and Performance Metrics

Density Control Capabilities

Density control is crucial for mold integrity. Hangzhou Ouchen’s machines offer high-precision electronic weighing systems that maintain deviations within ±1 gram.

The foaming process is automatically controlled by a PLC program, with a Baode proportional valve controlling the temperature inside the foaming chamber.

Steam and Energy Efficiency

Ouchen’s EPS pre expander machines use electromagnetic-steam hybrid heating methods that reduce steam consumption compared to traditional models.

Adopting electromagnetic and steam mixed foaming method, the beads are full without rupture and the spherical surface is smooth.

Automation and Control Systems

Modern systems include PLCs with remote diagnostics and parameter storage for quality traceability.

The human-machine interface system has remote control function, remote system upgrade and optimization function, and remote debugging of equipment parameters function.

Operational Benefits for Lost Foam Casting Manufacturers

Enhancing Mold Quality and Dimensional Accuracy

Uniform bead expansion ensures consistent pattern density, leading to better dimensional accuracy in final castings.

The discharge method is to sink the bottom of the bucket and discharge the material as a whole, with fast discharge speed and high efficiency.

Reducing Material Waste and Production Costs

Precise control minimizes over-expansion or under-expansion issues that lead to scrap or rework.

Electronic weighing automatic feeding guarantees foam density precision.

Improving Cycle Time and Throughput

Automated operation reduces downtime between batches while maintaining consistency across shifts.

One click start, automatic operation, easy to operate.

Integration with the Lost Foam Casting Production Line

Workflow Compatibility with Pattern Molding Systems

EPS pre-expanders feed directly into molding systems through automated conveyors or vacuum transport systems compatible with downstream molding equipment.

The fluidized bed has a vibrating screen for preliminary filtration function before being sent to the maturation bin for maturation.

Synchronization with Drying, Coating, and Assembly Stages

Properly expanded beads dry faster due to lower moisture content; this accelerates coating adhesion time and mold assembly cycles.

Low water content reduces gas generation during casting reducing porosity, slag inclusions, carbon defects.

Factors to Consider When Selecting an EPS Pre Expander Machine

Capacity Requirements Based on Production Volume

Machines like OC-YF-Y450 (40kg) or OC-YF-Y550 (60kg) cater to different throughput needs based on foundry scale.

OC-YF-Y450 1650x1200x2680 40kg OC-YF-Y550 1750x1250x3450 60kg

Machine Footprint and Space Optimization

Compact vertical designs help optimize factory floor space without compromising output capacity.

Maintenance Needs and Durability Considerations

High-quality stainless steel components reduce corrosion; PLC diagnostics simplify troubleshooting.

The equipment has leakage protection function and power outage protection function

Advances in EPS Expansion Technology for Foundry Applications

Innovations in Energy Efficiency and Environmental Compliance

Newer models integrate heat recovery systems that reduce energy usage while meeting environmental standards.

It makes up forthe defects of high energy consumptionand poor quality of traditional coal-fired gas-fired boilers

Smart Controls and Real-Time Monitoring Capabilities

Remote upgrades allow manufacturers to keep software current without halting production lines.

Remote system upgradeand remote debugging of equipment parameters function

Common Challenges Faced by Manufacturers Using EPS Pre Expanders

Managing Consistent Bead Expansion Quality

Environmental factors like ambient humidity affect expansion; intelligent feedback loops help maintain stability.

Addressing Steam Supply Limitations in Industrial Settings

Hybrid heating systems reduce dependency on steam infrastructure by supplementing with electromagnetic heating.

Best Practices for Operating and Maintaining EPS Pre Expander Machines

Recommended Operating Parameters for Optimal Results

Maintain chamber temperature at 98°C using electromagnetic heating; monitor pressure via automated valves.

Using electromagnetic heating to stabilize the temperature of the barrel at 98 degrees

Routine Maintenance Schedules to Ensure Longevity

Regular cleaning prevents bead agglomeration; check valve functions weekly; calibrate weighing systems monthly.

Future Outlook for EPS Pre Expanders in Lost Foam Casting Industry

Trends Toward Automation and Digitization in Foundry Equipment

Integration with MES (Manufacturing Execution Systems) will enable real-time analytics across entire production lines.

Scienceand technology to Liberate Productivity Intllient Mould Libraryunmanned inteligent production workshop

Potential Developments in Material Handling Integration

Expect tighter integration between pre-expanders, drying units, molding machines through smart conveyors managed via centralized software platforms.

FAQ

Q: What density should I aim for when expanding EPS beads?
A: For lost foam casting applications, aim for around 20 g/l density depending on part complexity.

Q: Can I use recycled EPS material?
A: Yes. Modern machines can handle recycled material blends if properly cleaned before re-expansion.

Q: How long does bead maturation take after pre-expansion?
A: Typically 8–12 hours depending on ambient conditions; shorter times risk poor fusion during molding.

Hangzhou Ouchen ：leading eps pre expander machine for lost foam casting manufacturers

हांग्जो ओचेन टेक्नोलॉजी कं, लिमिटेड. specializes in producing high-end intelligent equipment specifically designed for lost foam casting applications.

Hangzhou Ouchen Technology Co.,LTD.,is specialized in the production of high-end intlligent disappearing mode white area equipment enterprises,the company is located in Hangzhou Fuyang District Xindeng Town

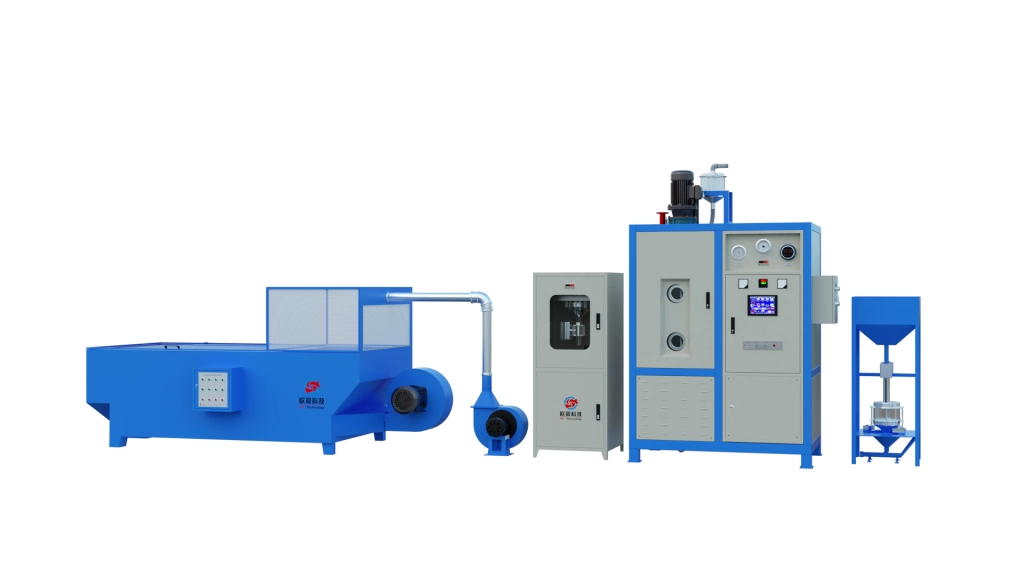

Their fully automatic pre-foaming machine—including fluidized drying bed—offers unmatched performance:

• One click start, automatic operation
• Beads are full without rupture spherical surface is smooth
• Quantitative foaming using electronic weighing method
• Leakage protection function power outage protection function

These features make it one of the most advanced solutions available today for foundries seeking reliable eps pre expander machines for lost foam casting operations.
