The Fundamentals of Lost Foam Casting

फोम कास्टिंग खो गया is a modern metal casting technique that uses expendable foam patterns to create complex and precise components. This process involves the use of a foam pattern, typically made from expanded polystyrene (EPS), which is coated with a refractory material and then embedded in unbonded sand. When molten metal is poured into the mold, the foam vaporizes, leaving behind a cavity that perfectly replicates the original pattern. This method enables the production of intricate parts with minimal machining, making it ideal for industries requiring high dimensional accuracy and design flexibility.

The Role of EPS in Lost Foam Casting

Why Expanded Polystyrene (EPS) is Ideal for Pattern Making

EPS is widely used in lost foam casting due to its low density, excellent moldability, and ability to vaporize cleanly when exposed to molten metal. These characteristics allow for detailed and accurate patterns that are easy to handle and cost-effective to produce. EPS also offers consistent cell structure and dimensional stability, which are crucial for maintaining pattern integrity throughout the casting process.

Advantages of EPS Patterns in Complex Casting Applications

EPS patterns enable the creation of highly complex geometries that would be difficult or impossible with traditional sand casting methods. Their lightweight nature simplifies handling and assembly, while their compatibility with advanced molding equipment ensures repeatability and precision. Additionally, EPS patterns can be easily modified or customized for prototyping or low-volume production runs.

Introduction to EPS Shape Molding Machines with Vacuum

What Are EPS Shape Molding Machines with Vacuum?

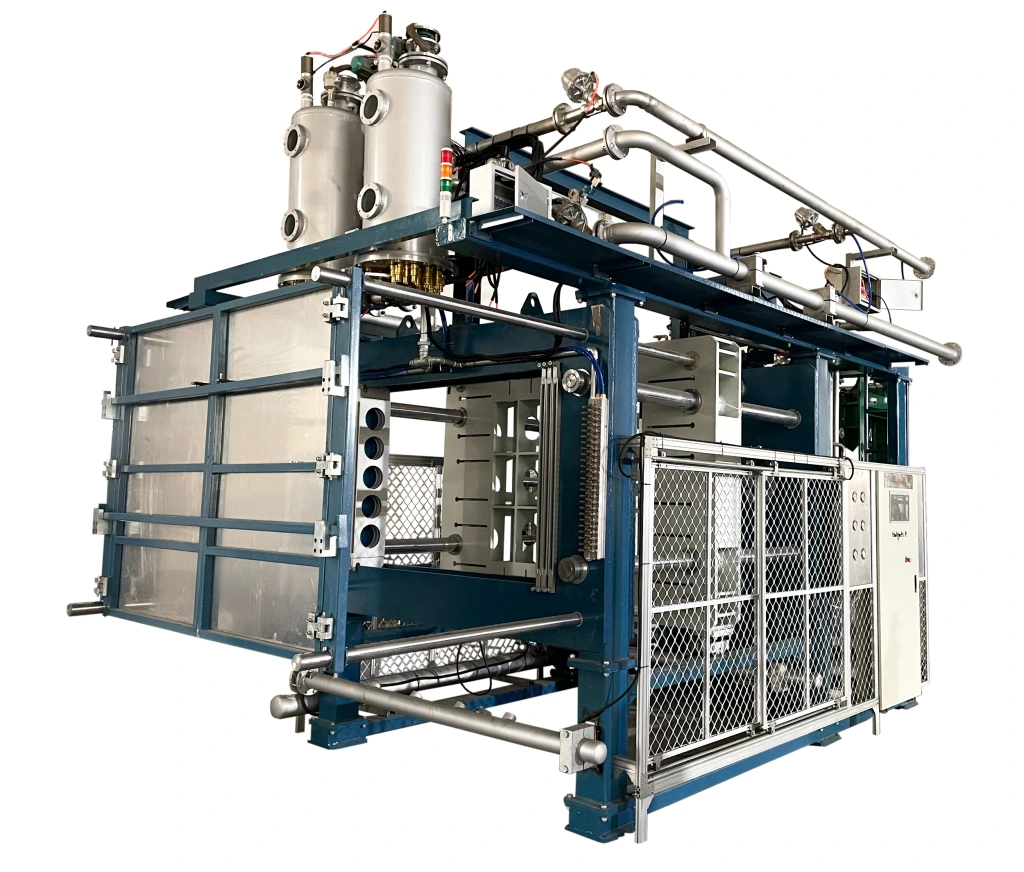

EPS shape molding machines with vacuum are specialized equipment designed to produce high-precision foam patterns used in lost foam casting. These machines utilize vacuum technology during the molding process to enhance cooling efficiency and improve pattern quality. Hangzhou Ouchen Technology Co., Ltd. is a company specializing in the production of high-end intelligent lost foam area equipment.

Key Features and Components of These Machines

The hydraulic vertical foam molding machine adopts computer touch screen display, PLC automatic control, and hydraulic drive to automatically complete a molding process; with personalized parameter computer operation interface and database. It includes features like remote control function, remote system upgrade, system optimization, and remote debugging equipment parameters function. The machines are equipped with pulse pressurized feeding tanks, vacuum + atomized water cooling systems, and high-performance hydraulic systems.

Benefits of Vacuum Integration in the Molding Process

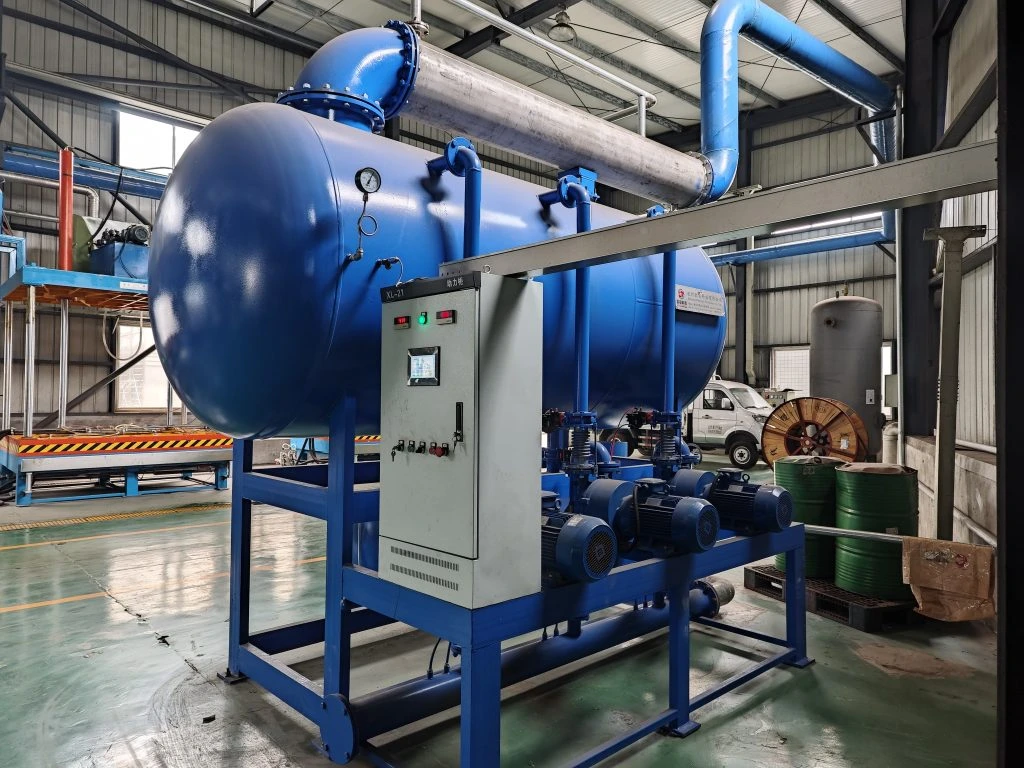

Vacuum technology significantly improves the cooling rate of molded EPS patterns while reducing moisture content. The system shall adopt touch screen and PLC automatic control It can automatically start or shut down several vacuum pumps according to the set vacuum negative pressure requirements. This results in faster cycle times, better dimensional stability, and reduced deformation upon demolding. The white mold does not deform after being ejected from the mold, and the surface is flat and not bulging.

How eps automatic vacuum shape molding machine Enhances Casting Quality

Improved Dimensional Accuracy and Surface Finish

By combining digital controls with vacuum-assisted cooling, these machines ensure precise bead filling and uniform density distribution across the entire mold cavity. The computer memorizes the technical parameters of different mold production making it easy to trace and analyze the molding process of each white mold. This leads to superior surface finishes on cast parts and minimizes post-processing requirements.

Reduction of Defects and Porosity in Final Castings

Vacuum integration minimizes air entrapment during bead fusion, significantly lowering porosity levels in both patterns and final metal castings. The negative pressure in the operating state is not allowed to be lower than -0.05MPa The white mold cools quickly and has a low moisture content. Additionally, active exhaust functions during feeding further reduce internal defects.

Enhanced Mold Filling and Pattern Integrity

It has three feeding methods: pressurized multi-point simultaneous or pulse feeding and group pulse feeding to ensure uniform bead filling. Combined with overpressure protection features during molding, this ensures consistent pattern integrity even under demanding conditions.

Technical Aspects of eps automatic vacuum shape molding machine Operation

Machine Configuration and Control Systems

These machines feature an integrated PLC system with a user-friendly touch screen interface for real-time monitoring. The electrical system adopts PLC control The computer memorizes the technical parameters It has remote control function. Sensors monitor steam pressure within cavities while digital encoders manage mold movements precisely.

Cycle Time Optimization and Energy Efficiency

The heating system adopts the “low pressure and large flow” solution cooling system adopts vacuum + atomized water cooling design solution. These innovations reduce steam consumption while speeding up cycle times without sacrificing quality. The hydraulic systems include large/small pump speed devices that optimize energy usage based on operational demands.

Applications Across Industries Using EPS Shape Molding Machines with Vacuum

Industries such as automotive, aerospace, machinery manufacturing, pump housing production, valve bodies, agricultural machinery components benefit from lost foam casting using EPS molds produced by these machines. Their ability to deliver precision parts at scale makes them indispensable across sectors requiring high-performance castings.

Factors to Consider When Choosing an EPS Shape Molding Machine with Vacuum

Production Volume and Pattern Complexity Requirements

High-volume producers should opt for fully automated systems capable of handling complex geometries efficiently. Machines must support advanced functionalities like multi-zone filling or one-touch mold change systems depending on complexity needs.

Machine Size, Compatibility, and Customization Options

Model OC-CX-Y1210 through OC-CX-Y2822 offer varying table sizes from 12001000mm up to 28002200mm Customization is acceptable if there are special size requirements. Selecting appropriately sized equipment ensures optimal space utilization without compromising capacity.

Maintenance, Support, and Operational Cost Considerations

Choose machines backed by robust after-sales service including remote diagnostics capabilities. The human-machine interface system has remote control function free lifetime remote system upgrade achieving no-wait after-sales service. Look for energy-efficient models that minimize steam/water usage over time.

FAQ

Q: What makes vacuum integration so important?
A: Vacuum cooling accelerates cycle times while improving pattern quality by reducing moisture content—critical for dimensional stability during casting.

Q: Can these machines handle different types of molds?
A: Yes. The molding machine structure must have side filling/top filling capabilities installing molds of different models/specifications on one machine.

Q: How long does it take to change molds?
A: With fast-change systems it takes 20–30 minutes; one-touch systems reduce this further to about 5 minutes.

buy eps automatic vacuum shape molding machine from Hangzhou Ouchen Technology Co., LTD

For those seeking advanced solutions in lost foam casting technology,Hangzhou Ouchen Technology Co., Ltd. offers industry-leading eps shape molding machines with vacuum integration designed for precision manufacturing environments.Hangzhou Ouchen Technology Co., Ltd. is a company specializing in the production of high-end intelligent lost foam area equipment. Contact them today at Tel:+86 15988479417 or Email：zyh@oc-epc.com for more information about their customizable product line tailored to your specific manufacturing needs.
