Introduction to Lost Foam Casting Techniques

The lost foam casting technology is a casting method that uses foam plastics to make a full mold with the same structure and size as the parts, which is dipped with fire-resistant adhesive coating, dried, dry sand molding, vibrated and compacted, and then poured with a liquid metal to make the pattern evaporate by heating, so as to obtain a metal part with the same shape as the pattern. This process eliminates the need for traditional pattern removal and enables high precision in complex castings. As industries demand better performance and lower production costs, various advanced techniques have evolved from this base method. This article explores six innovative types of lost foam casting (LFC) techniques that are shaping modern manufacturing.

Pressure Lost Foam Casting

The pressure lost foam casting technology is a new casting technology that combines the lost foam casting technology with the pressure solidification crystallization technology. In this method, molten metal is poured into a sandbox inside a sealed pressure tank. As the foam vaporizes, gas pressure is applied to promote solidification under pressure. The characteristics of this casting technology are that it can significantly reduce the casting defects such as shrinkage cavity, porosity, and air hole, improve the density of castings, and improve the mechanical properties of castings. This makes it especially valuable for components requiring superior strength and structural integrity.

Vacuum Low-Pressure EPC

Vacuum low-pressure EPC technology is a new casting technology developed by combining the negative-pressure EPC method with the low-pressure anti-gravity casting method. It uses controlled vacuum conditions during mold filling to enhance alloy flow ability. Compared with die casting, the equipment investment is small, the casting cost is low, and the casting can be strengthened by heat treatment; Compared with sand casting, the casting process has high precision, small surface roughness, high productivity, and good performance. Under the action of counter gravity the liquid alloy is fed and solidified under controllable pressure the yield is high, and the structure is dense. This technique is particularly suited for non-ferrous alloys due to its low pouring temperature.

Vibration EPC

Vibration EPC casting technology is to apply a certain frequency and amplitude of vibration in the EPC process so that the casting can solidify under the action of the vibration field. The vibration causes relative movement between liquid and solid phases during solidification. the vibration force causes dendrite break increases crystal core in the liquid phase makes final solidification structure of the casting refined This leads to improved mechanical properties without additional processing steps. It is a simple, low-cost, environment-friendly method.

Semi-solid Lost Foam Casting

Semi-solid lost foam casting technology is a new casting technology that combines lost foam casting technology with semi-solid technology. This approach involves controlling both liquid and solid phases during pouring—commonly referred to as transformation control semi-solid forming. This technology can improve the density of castings, reduce segregation, and improve dimensional accuracy and casting performance. It’s ideal for applications where dimensional tolerance and uniformity are critical.

EPC Shell Mold Casting

EPC shell mold casting technology is a new casting method that combines investment casting technology with EPC. Here, multiple layers of refractory material are applied on foam patterns. Once dried and hardened, these shells are burned out along with vaporizing foam during preheating. It has the characteristics of large pattern size and high precision in lost foam castingas well as shell precision and strength in investment casting. Compared with ordinary investment castinglow cost of foam plastic pattern materialeasy vaporization making it suitable for large complex alloy parts.

EPC Suspension Casting Technology

EPC suspension casting technology is a new practical casting technology that combines the EPC process with suspension casting. In this technique, suspending agents are either placed within risers or embedded in specific locations within EPS molds. When molten metal contacts these agents during pouring, chemical reactions enhance localized material properties. The technological process is that after the molten metal is poured into the moldreacts with the molten metal to improveorganizational performance of the casting.

よくあるご質問

What materials are suitable for lost foam casting?
Lost foam techniques work well with ferrous metals like steel or iron as well as non-ferrous alloys such as aluminum or magnesium.

How does LFC compare to traditional sand or die-casting?
LFC offers higher dimensional accuracy than sand-casting while being more cost-effective than die-casting for short runs or complex geometries.

Is vacuum low-pressure EPC suitable for aerospace components?
Yes. Due to its ability to produce dense structures with minimal defects at lower temperatures using nonferrous metals, it’s highly applicable in aerospace applications.

Can vibration be applied universally across all LFC processes?
While beneficial for grain refinement in most cases, not all setups may support precise control over vibration parameters required for optimal results.

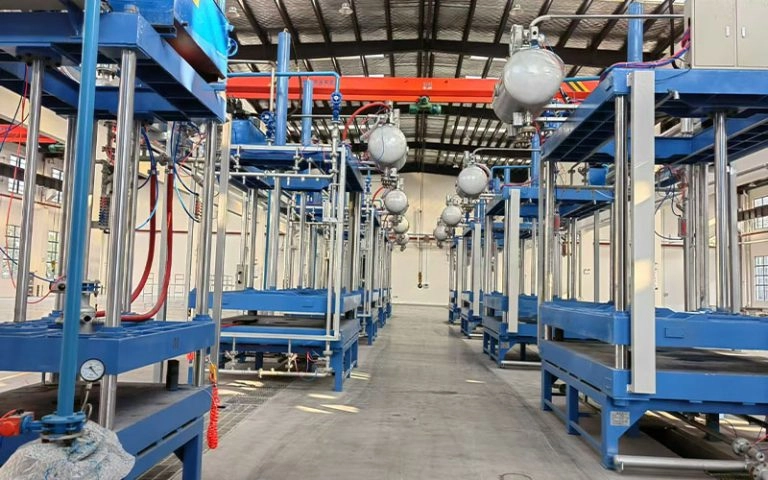

img.Hangzhou Ouchen High-End Intelligent Lost Foam Area Equipment
