What is Lost Foam Casting Process?

Lost foam casting, also called evaporative pattern casting, is a neat way to make detailed metal parts with little need for extra work after. It’s a modern method that mixes the accuracy of investment casting with the low cost of sand casting.

Pattern Creation

The process starts by making a pattern from polystyrene foam beads. These beads are puffed up, set, and shaped into a pattern that matches the part you want. These patterns are light and easy to form, great for complex shapes.

Permohonan salutan

After the foam pattern is done, it gets covered with a heat-proof material like ceramic or gypsum. This coating makes a hard shell. The shell is super important to keep the pattern strong when hot metal is poured in.

Drying

Drying is a key step after coating. The coated foam pattern needs to dry to get rid of water. This makes the shell strong and ready for metal pouring. If drying isn’t done right, steam can form during pouring and cause flaws like holes in the casting.

Penyediaan acuan

Once dry, the coated pattern goes into a flask with loose sand. The sand is packed around the pattern to hold it in place.

Mencurahkan

Hot molten metal is poured into the mold. The heat makes the foam vanish instantly. The metal fills the space left by the foam to form the casting.

Cooling and Finishing

After the metal cools and hardens, the casting is taken out of the sand. It’s cleaned and finished to be ready for use.

Role of Air Drying Systems in Lost Foam Casting

Industrial air drying systems create controlled spaces to dry foam patterns (white molds) and coated molds in lost foam casting. They keep exact temperature and humidity levels to make sure castings turn out great. Key jobs include:

• White Mold Drying: After shaping the foam pattern, it’s dried to remove extra water. This keeps the pattern steady for coating.
• Coated Mold Drying: After coating the foam with heat-proof material using a coating mixer, it’s dried to harden the shell and remove water. This stops flaws during casting.

Old drying methods, like steam or electric heating, use lots of energy, work slowly, and give uneven results. Advanced air drying systems from Hangzhou Ouchen Technology Co., Ltd. fix these problems with new tech, offering better performance and eco-friendly drying.

The drying step in lost foam casting is super important because:

• Prevents Mold Defects: Well-dried foam patterns and coatings lower the chance of cracks or warping during casting.
• Better Coating Adhesion: Good drying helps the heat-proof coating stick tightly to the foam pattern. This keeps the mold strong.
• Smoother Surface Finish: Well-dried molds make the final casting smoother, so less work is needed afterward.
• Faster Production: Good drying systems speed up the casting process, making more parts in less time.

Hangzhou Ouchen Technology Co., Ltd.’s Air Drying Systems

Hangzhou Ouchen Technology Co., Ltd., based in Xindeng Town of Hangzhou City’s Fuyang District, makes smart equipment for lost foam casting. Their air drying systems, including indoor and top-mounted models, use air energy heat pump tech to meet the needs of the lost foam casting industry.

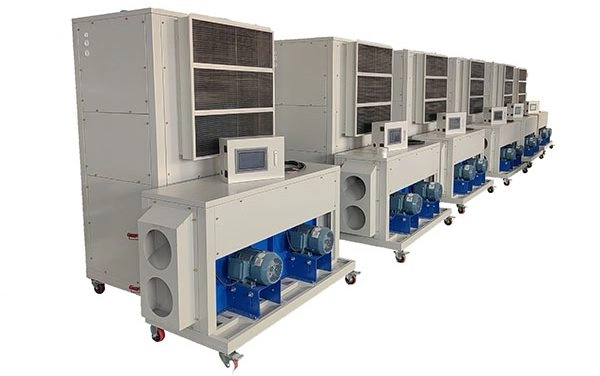

Rear Mounted Air Dryer

This rear mounted air drying equipment is called the “porter of nature.” It turns air heat into hot air for the drying room. It uses dehumidification to collect water vapor and reuse heat. This cuts energy use and has zero emissions.

Key Features:

• Doesn’t take up space inside
• Great at removing moisture
• Runs without stopping
• Sends hot air flexibly (direct or through pipes)

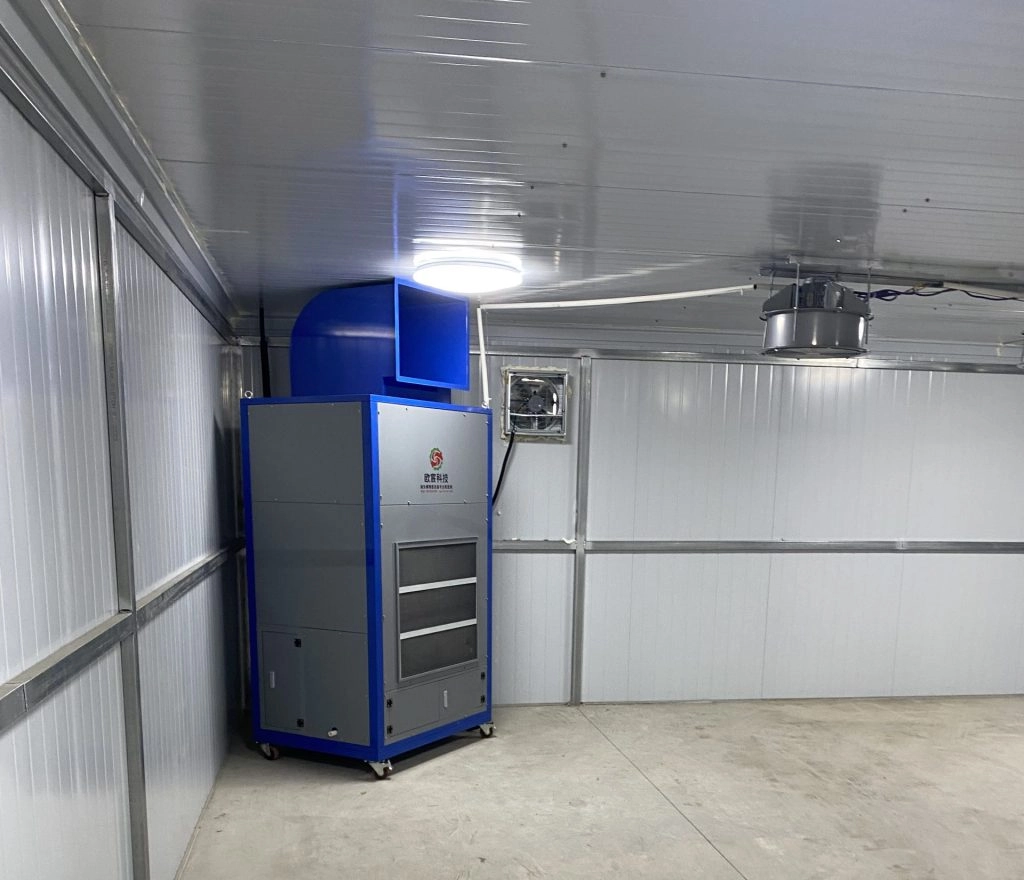

Indoor Air Dryer

This indoor air dryer machine uses heat pump air energy tech, condensation, and heat recovery. It’s fully automatic with smart controls.

Key Features:

• Temperature control from 35–60°C
• Humidity control down to 15%
• Energy-saving three-layer heat recovery
• Easy-to-use LCD controller + IoT remote module
• Zero emissions design

Benefits:

Lets one person manage multiple drying rooms at once, saving on labor costs.

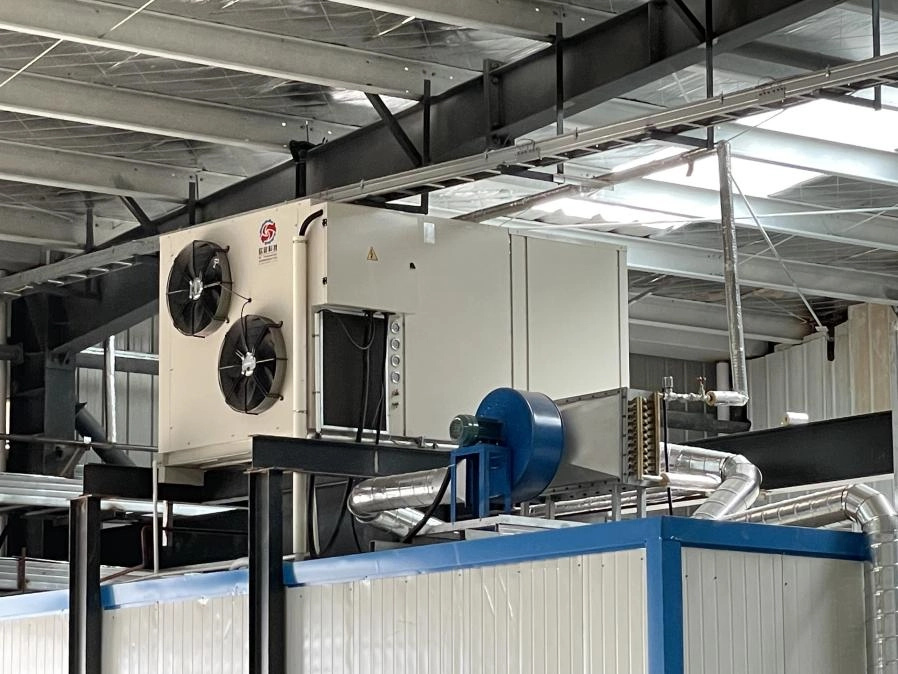

Top-Mounted Air Dryer

This top mounted air dryer uses the best air energy heat pump as its main heat source. It saves floor space by mounting above rooms.

Key Features:

• COP higher than 2.0
• Open-loop/closed-loop dehumidification
• Heat recovery rate over 70%
• Mobile app monitoring with IoT module
• No need for indoor room space

Model Variants:

Applications in Lost Foam Casting

In lost foam casting, air drying systems are used at two big steps:

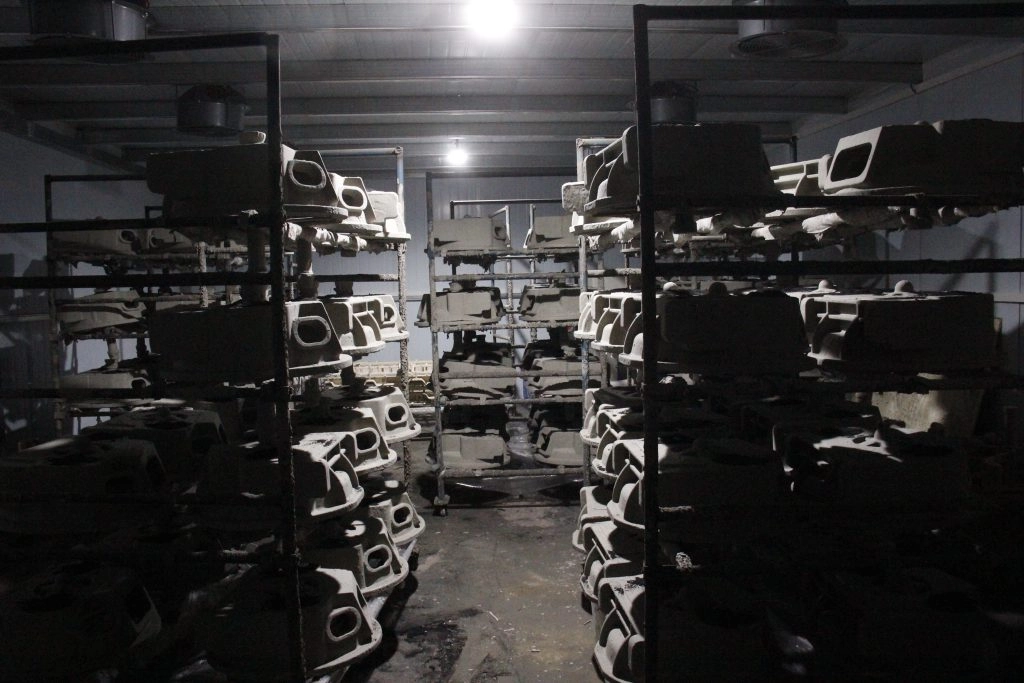

1. Drying Coated Patterns: Makes sure heat-proof coatings dry evenly at the right temperature and humidity.
2. Drying Final Castings: Removes water after the metal hardens to get parts ready for machining or storage.

Customization: You can adjust temperature, humidity, and airflow to match different drying room needs. This works for all kinds of casting sizes and shapes.

Advantages of Hangzhou Ouchen’s Air Drying Systems

Hangzhou Ouchen’s solutions bring big benefits:

• Energy Efficiency: Air source heat pump tech and three-layer heat recovery systems save over 70% of heat, cutting energy use compared to old methods.
• Environmental Sustainability: Zero-emission designs help meet global green goals.
• Labor Savings: The high-temperature heat pump drying unit has an automatic temperature control system, saving workers’ time with automation.
• Precision Control: Keeps tight control of temperature (±1°C) and humidity (below 15%) for perfect, defect-free castings.

Comparison with Traditional Drying Methods

Old methods like steam or electric heating have problems:

• High Energy Use: Steam and electric units use lots of power.
• Uneven Quality: Poor control leads to spotty drying results.
• Environmental Impact: Steam processes create emissions that hurt green efforts.

Hangzhou Ouchen’s systems fix these by:

• Using air source heat pumps for less energy.
• Offering precise control for even drying.
• Having zero emissions for a greener planet.

FAQ

What makes air energy heat pumps ideal for lost foam casting?

They give exact control of temperature and humidity while using less energy and making no emissions. This is key for perfect castings.

Can one system handle multiple drying rooms?

Yes. One person can manage several drying rooms at once, cutting labor costs a lot.

How do I choose between indoor vs top-mounted models?

Pick based on space. Top-mounted units save floor space, while indoor units work great inside closed spaces.

Are these systems customizable?

Yes. Hangzhou Ouchen makes custom solutions for temperature, humidity, and airflow based on your drying room’s needs for the best results.

For more info or to talk about picking an industrial air drying system for lost foam casting, contact Hangzhou Ouchen Technology Co., Ltd. pada zyh@oc-epc.com or call +86 15988479417.
