Lost foam casting (also known as evaporative pattern casting or EPC) stays one of the top ways to make tricky metal parts. It gives good size match and little after-work. The main part of this way is the foam molding machine. It builds exact expanded polystyrene (EPS) shapes that set the end casting good. As fields want more auto work, power save, and steady run in 2026, better foam molding machines have grown a lot to fit these needs.

This piece looks at the main points and tech in now foam molding machines set for lost foam casting uses.

The Critical Role of Foam Molding Machines in EPC

In lost foam casting, the foam shape needs to copy the end metal part with great match — any change in thick, form, or side good moves right to the casting. Foam molding machines make these shapes. They put pre-big polystyrene balls into a mold hole. Then they use steam, pull, and cool steps to join and hold the foam.

Now machines split into two main setups:

• Vertical foam molding machines— Best for big shapes and uses that need even ball spread over large mold spots.
• Horizontal foam molding machines— Chosen for quicker step times, fast mold swaps, and high lot make spots.

Both kinds have grown much. They add smart guides, power-back setups, and auto parts that cut bads and run costs.

Key Technological Advancements in 2026

Some new ideas set the top foam molding machines out now for lost foam casting:

1. PLC-Based Intelligent Control Systems

Now machines use work-grade PLC guides with man-machine links (HMI) that auto the full mold step. These setups keep full step info for each item. They make track bases. Workers can pull best sets right away. This cuts need for hand changes or test-wrong in fix or new mold tests. Far reach lets real-time watch, set changes, and setup up-grades with no on-spot need. It backs near-no-wait after-sales service.

2. Energy-Efficient Heating and Cooling Technologies

Better plans add steam-water separation, vacuum cooling with energy recovery, and high-temperature demolding ideas. These parts cut steam use, get back heat power, and let quicker steps. They keep shape good. Pull setups take out air and wet fast. This cuts cool time and betters ball join even.

3. Precise Filling and Pressure Management

Best machines use push feed tanks with auto ball send and computer-guide air match valves for steady push rule. Many-spot or zoned fill makes even ball spread with small thick changes — key to skip casting bads. Over-push guard in the mold hole, with work out-flow in fill, stops flash and twist.

4. Robust Structural Design

Machine plans come from high-power steel sheets (such as Q325). They get 600°C heat fix to stop bend. Then they face shot blast, sand blast, hot-dip zinc, and guard paint. This build gives long-time size hold even under repeat heat steps.

5. Fast Mold Change Systems

Side setups often have rail-base quick mold swap parts that cut stop time to 20–30 minutes. One-touch full auto kinds hit changes in about 5 minutes. They turn in-set time to out prep and back lean make rules.

6. Enhanced Mold Locking and Stability

Push setups give lock power better than old EPS gear. Even spread lock spots make steam-tight close. This max heat good and shape even over long run.

These steps together let higher shape good, less power use, lower work need, and better make flow — main goals for cast shops in 2026.

Vertical vs. Horizontal: Choosing the Right Configuration

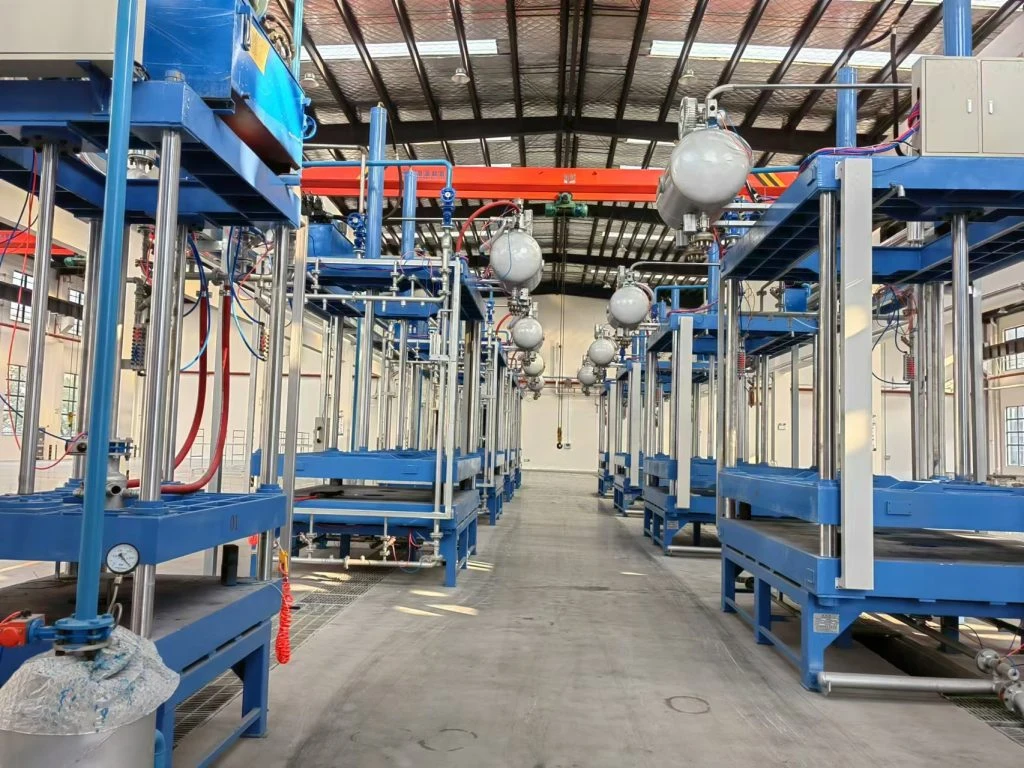

Vertical Foam Molding Machines

Vertical PLC hydraulic forming machines do well when big or custom-size shapes are needed. Common work table sizes go from 1200×1000 mm to 2800×2200 mm. Strokes reach up to 2500 mm. Their plan likes even many-spot fill and mold hole guard. This makes them fit for tricky, high-worth parts.

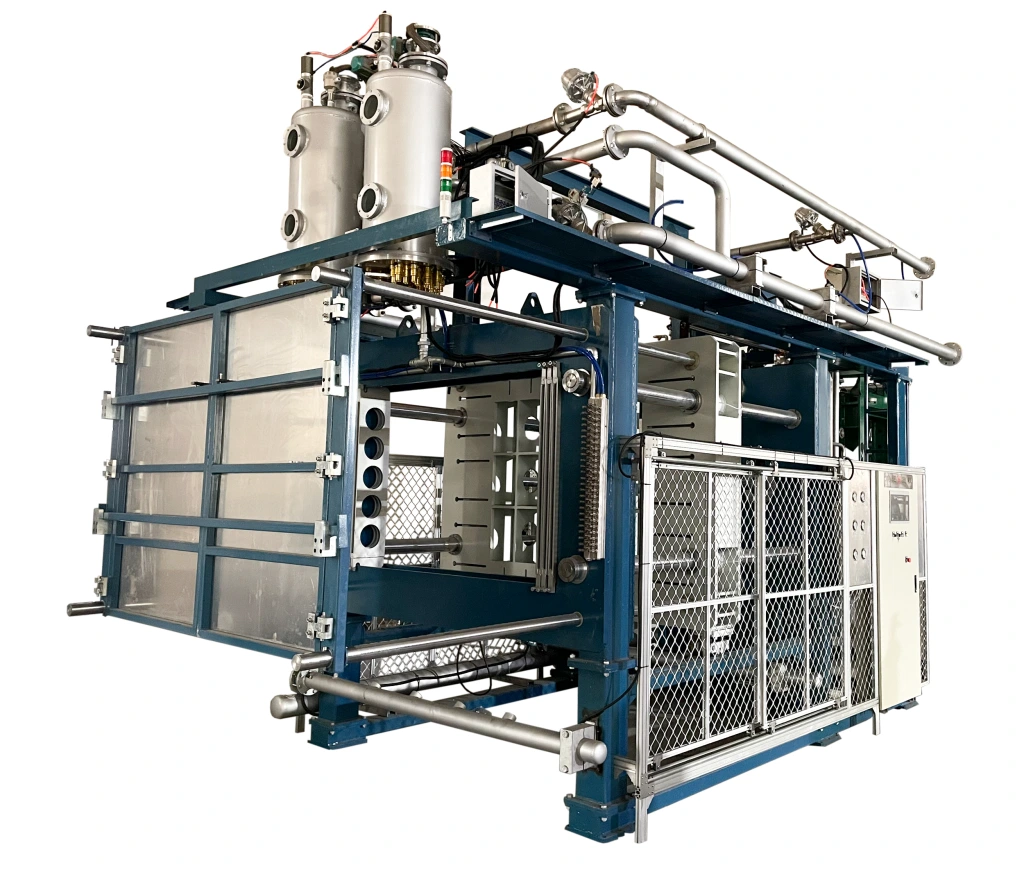

Horizontal Foam Molding Machines

Horizontal forming machines put speed and bend first. Mold face sizes stay around 1200×1400 mm to 1600×1800 mm. Item heights go up to 350 mm. They back quick mold swaps and strong lock parts. These traits make side kinds best for mid-to-high lot make lines where cut stop time is key.

Both setups back change for set cast shop needs. They make sure fit with varied shape forms and make sizes.

Why Advanced Foam Molding Machines Drive Lost Foam Casting Success

Good foam shapes change casting ends right — even thick stops gas hole bads, exact sizes cut cut need, and smooth sides better end look. In 2026, cast shops that take machines with smart guides, power back, and quick swap skills get:

• Lower waste rates
• Cut steam and power use
• Shorter wait times
• More form free for tricky shapes
• Better worker safe and work spots

These gains add up over the full EPC way, from white spot shape make to black spot pour and end work.

Conclusion and Equipment Recommendations

The foam molding machine stays the base of good lost foam casting runs. As the field goes to smarter, green, and more auto make in 2026, machines that mix exact build, smart guides, and power-save parts give the best edge win.

OC Technology shows as a set manufacturer and supplier of top smart lost foam casting gear. The company gives better vertical PLC hydraulic forming machines (OC-CX-Y series, with table sizes from 1200×1000 mm to 2800×2200 mm and set strokes), horizontal forming machines (OC-CX-W series with quick and one-touch mold swap), pre-foaming machines, air dryers, and full system answers. These machines add the new power-save tech, far check, and strong build set for now EPC cast shops.

Frequently Asked Questions (FAQ)

What makes a foam molding machine suitable for lost foam casting?

It needs to give even ball fill, exact steam and pull rule, steady mold lock, and same cool to make top EPS shapes with small thick change.

Why are vertical machines preferred for some applications?

Up plans give great even over big mold spots and back big or custom shapes. This makes them best for tricky or over-size parts.

How do horizontal foam molding machines improve efficiency?

They have quick mold swap setups (20–30 minutes or ~5 minutes with one-touch auto) and strong lock parts that cut stop time and raise flow.

Can modern foam molding machines reduce energy consumption?

Yes — tech like steam-water separation, vacuum cooling power back, and set heat steps cut steam and power use a lot.

What level of automation is available in 2026 foam molding machines?

Better kinds have full PLC rule, set bases, far watch/up-grades, auto send, and match valve setups for exact, same run.

Source Advanced Foam Molding Machines from a Leading EPC Equipment Manufacturer

Cast shops, casting manufacturers, and gear suppliers that want to up lost foam casting skills should link with OC Technology. As a set factory and supplier of edge foam molding answers, the company gives set vertical and horizontal machines, full system join, far tech service, and power-save plans built for 2026 make needs. Reach the team at zyh@oc-epc.com or +86 15988479417 to talk project needs, ask for price lists, or look at team chances. Visit https://www.oc-epc.com/ for full specs, tech info, and use samples.
